The bandwidth on the Alexloop.

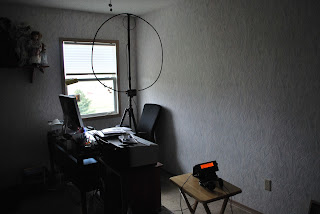

The next step in my Alexloop tests is the bandwidth in which the loop has. Again the antenna is mounted in a bedroom/office on the second floor of the house so that may have some affect on the SWR. I do plan on getting the loop in the out doors were the ceiling, walls and surrounding furniture do not have an affect on the loop. Below is the bandwidth results.
28.004 (SWR at 2.2) to 28.060 (SWR at 2.1) around 60 Khz of bandwidth.
21.020 (SWR at 2.0) to 21.070 (SWR at 1.7) around 50Khz of bandwidth
14.000 (SWR at 2.1) to 14.035 (SWR at 1.9) around 35Khz of bandwidth
10.110 (SWR at 1.8) to 10.125 (SWR at 1.9) around 15Khz of bandwidth
  7.005 (SWR at 2.5) to 7.015 (SWR at 2.6) around 10Khz of bandwidth
 I did however use the ATU on the KX3 and the SWR was flat when used on all bands so if I want I can use the tuner and increase the bandwidth of the antenna. I do know that my attic dipole on 10Mhz the SWR is about 9.1 to 1 and the tuner will flatten that out and I have made lots of milli watt contacts all over the world. So the next step is to get this antenna out doors and give it a whirl out there and see how it does.


2 comments:

  1. Thanks for the photo and further info, Mike. Would be interesting to see if some contacts could be made from that present set-up. Something for those restricted to indoor antennas could to refer to.

    Is the window frame aluminum or vinyl?

    73 Dick

    ReplyDelete
    Replies
    1. Good morning Dick, the window frame is vinyl and I will be making contacts from indoors but first now that the good weather is coming I am going to be taking the antenna outside to see how it fares in the outdoors.
      Mike
